2 - 18 GHz Broadband I & Q Vector Modulator

Model M2L-69N-5 is a 2.0 to 18.0 GHz, Pin Diode, I & Q Vector Modulator. This device simultaneously controls phase and amplitude with 360 Degree & 20 dB of dynamic range.

Model M2L-69N-5 is a 2.0 to 18.0 GHz, Pin Diode, I & Q Vector Modulator. This device simultaneously controls phase and amplitude with 360 Degree & 20 dB of dynamic range. The phase and amplitude flatness is +/- 20 Degrees and +/- 3.0 dB. VSWR is 2.0:1 and Insertion Loss is 16 dB. It’s Digitally Controlled via 2 sets (I & Q) of monotonic 12 Bit TTL binary logic and switches in 500 nSec. The device control input slope is linear with output voltage. The size is 4.25 x 3.5 x 0.75 inch.

Pulse Modulators

Absorptive input pulse modulators offer frequency ranges from 100 MHz to 24 GHz in up to 9:1 bandwidths and are available with optimized narrowband performance. High speed switching includes 15 ƞSec RF and 15 ƞSec delay for a maximum of 30 ƞSec. These can be offered with unit-to-unit phase and amplitude matching and configurations up to SP4T.

Switches

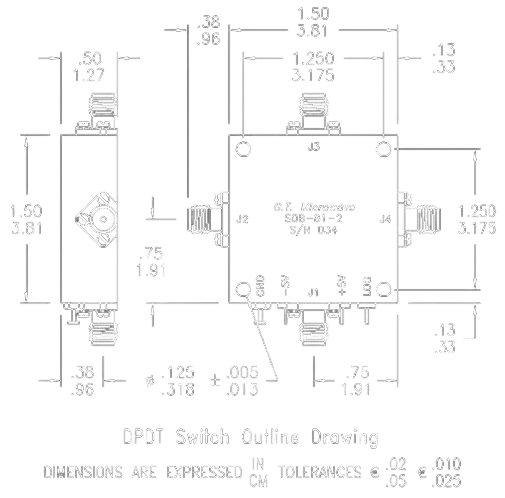

DPDT PIN Diode Switches

From 100 MHz to 24 GHz, any optimized bandwidth is available in absorptive or reflective models. Units can be customized for your application with offerings of various isolations, switching speeds, size configurations and even matched phase and amplitude. Control options include solder pins, SMA or SMC Connector, and Multi-Pin connector

Switches

SP16T PIN Diode Switches

From 100 MHz to 24 GHz, any optimized bandwidth is available in absorptive or reflective models. These are available in any combination between a SP9T to a SP16T. Units can be customized for your application with offerings of various isolations, switching speeds, size configurations and even matched phase and amplitude. Control options include solder pins or Multi-Pin connector
