Current Controlled Attenuators

Control options including solder pins, SMA or SMC Connector. Options including narrowband optimized performance, video filtering and sub-assembly integration. Operating frequency ranges span from 250 MHz to 40 GHz in up to 9:1 bandwidths.

Frequency Ranges: From 250 MHz to 40 GHz, any optimized bandwidth is available.

‍‍

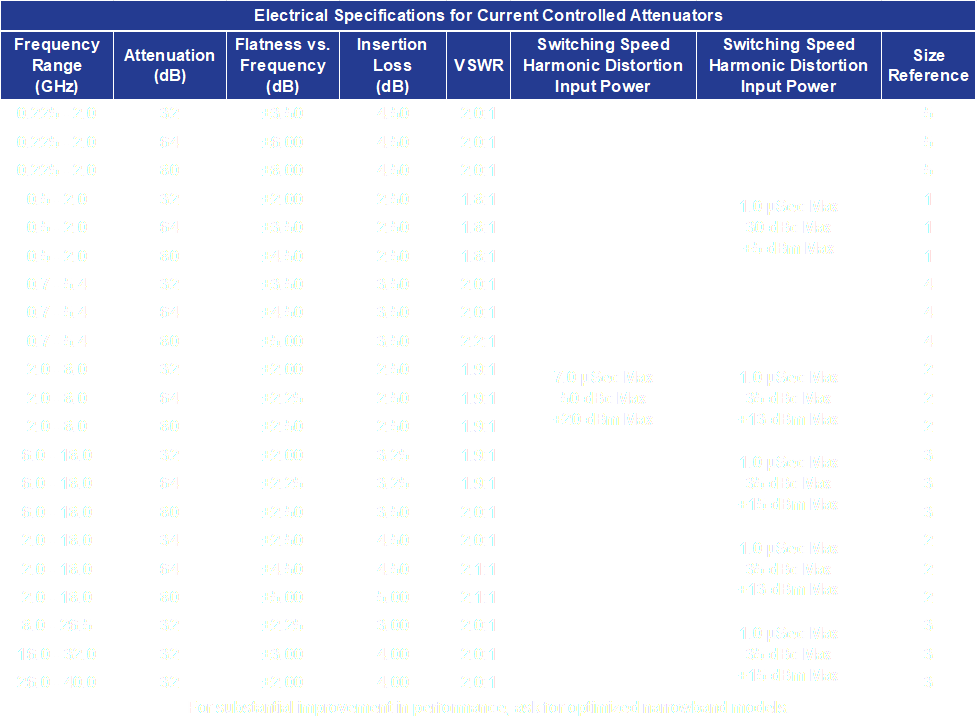

Current Controlled: 0 mA = Insertion Loss (zero attenuation) to +20 mA = Max Attenuation. For additional options, please consult the factory.

‍‍

High Speed Switching: Attenuators listed are measured from any set value to any value. Switching speeds as low as 50 ƞSec available upon request.

‍‍

Operating Temperature Range: Standard models include temperature compensation in a range from 0° to +50° C. For more severe environments, please consult the factory.

‍‍

Stable Attenuation: Variation vs. temperature from -55° to +85° C is typically ±10% of the set value.

‍‍

Standard Interfaces: RF port connectors are ‘SMA’ female per MIL-C-39012. Control connections are solder terminals. Please consult the factory for additional options.

‍

Pulse Modulators

Absorptive input pulse modulators offer frequency ranges from 100 MHz to 24 GHz in up to 9:1 bandwidths and are available with optimized narrowband performance. High speed switching includes 15 ƞSec RF and 15 ƞSec delay for a maximum of 30 ƞSec. These can be offered with unit-to-unit phase and amplitude matching and configurations up to SP4T.

DPDT PIN Diode Switches

From 100 MHz to 24 GHz, any optimized bandwidth is available in absorptive or reflective models. Units can be customized for your application with offerings of various isolations, switching speeds, size configurations and even matched phase and amplitude. Control options include solder pins, SMA or SMC Connector, and Multi-Pin connector

SP16T PIN Diode Switches

From 100 MHz to 24 GHz, any optimized bandwidth is available in absorptive or reflective models. These are available in any combination between a SP9T to a SP16T. Units can be customized for your application with offerings of various isolations, switching speeds, size configurations and even matched phase and amplitude. Control options include solder pins or Multi-Pin connector
